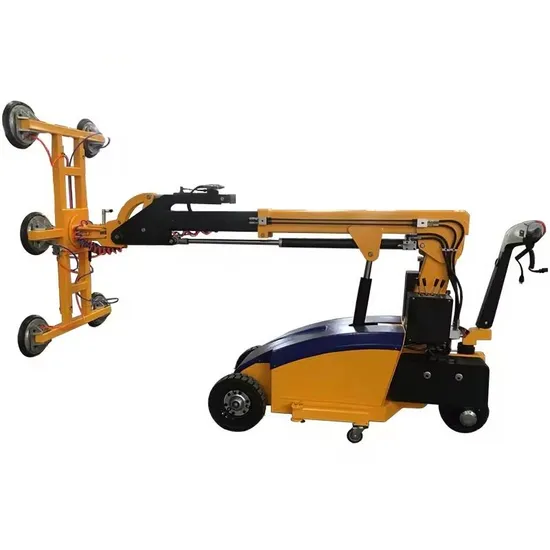

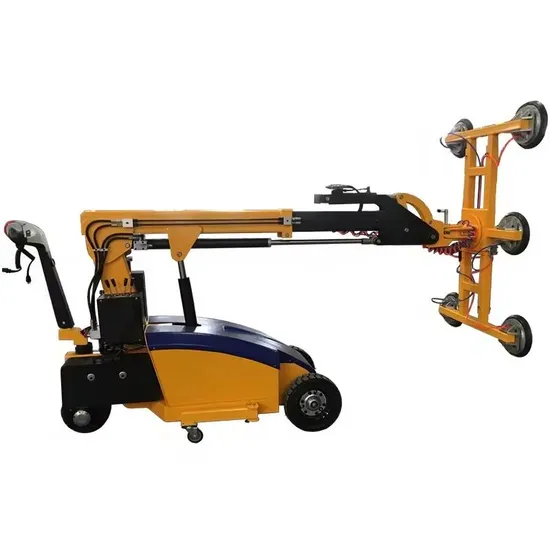

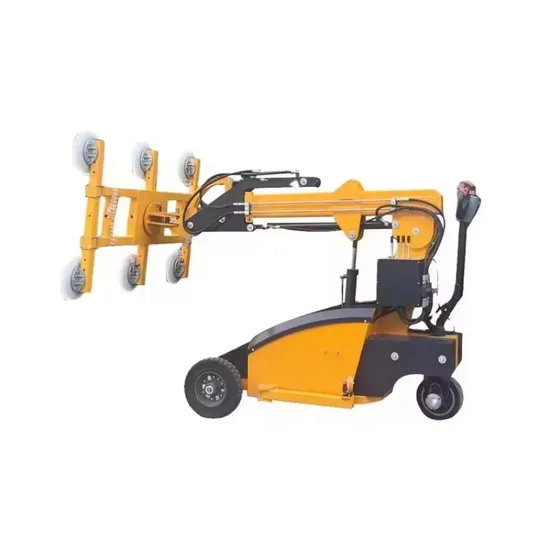

A high-efficiency, DC-powered glass manipulator robot for automated handling, transport, and installation of curtain wall glass, designed for forklift attachment.
Features a dual vacuum system for secure and redundant gripping of glass panels up to 600kg.
Equipped with a DC 24V brushless motor and hydraulic station for automated movement and precise, sensible control.
Offers multi-dimensional adjustments including 130° tilting, 360° manual rotation, and 150mm side moving for exact positioning.
Powered by a dual 12V, 120A battery system, providing up to 20 hours of continuous operation on a single 8-hour charge.
Designed for versatility in glass factories, logistics, and on-site curtain wall installation, enhancing safety and operational efficiency.
Maximum Loading Capacity: 600kg (arm retracted); 300kg (arm fully extended)
Maximum Lifting Height: 3500mm (from ground to suction frame center)
Rotation Control: Manual, 360 degrees with spring lock positioning
Tilting Control: Hydraulic, up to 130 degrees
Power System: DC 24V (2 x 12V, 120A batteries)
Certification: ISO, CE
